Brand: ELECTECK
Color: Off-white ( Blue Backlight )
Features:
- 【Non-Programmable Thermostat】Non-programmable electronic thermostat, single stage, 1 heating and 1 cooling, electric or gas/oil configurable. Not compatible with 110-240V electric heat systems (e.g. electric baseboard heat, line voltage, convectors, radiant-ceiling heat.
- 【Single Stage 1 Heat/1 Cool】Work with single stage heating, cooling and heat pump (without aux) systems. Does not work with multi-stage systems, mini split systems, heat pump (with aux or emergency heat) systems and 12v rv thermostats.
- 【Large Digital LCD Display】Easy-to-read digital 4.5 sq. in. display with large characters and white backlight. Big separate buttons for easy setting.
- 【Temperature Control】Precise temperature control with +/- 1 degree in Fahrenheit and Celsius for ultimate consistent control.
- 【Easy to Install】Easy installation, dual powered by 24VAC power or 2 AAA batteries, C-wire is not required.
Binding: Kitchen
model number: KRT1H1C
Part Number: KRT1H1C

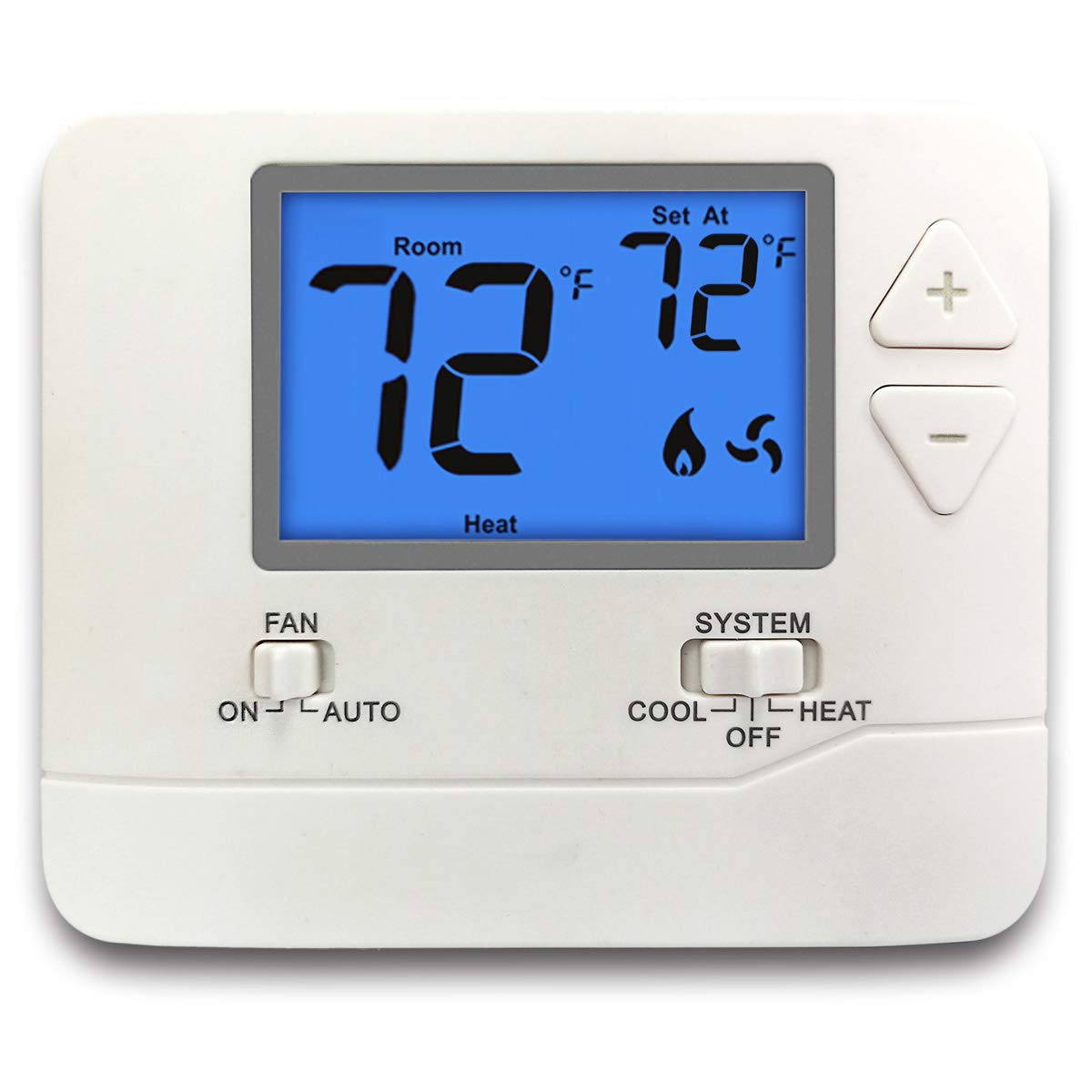

Details: ELECTECK Digital Thermostat – Nonprogrammable Single Stage 1 Heat/1 Cool
When it comes to thermostats, consumers expect the very best in energy efficient technology. This conventional nonprogrammable thermostat features a large, easy-to-read, backlit LCD screen that can be seen from across the room.
The transparent faceplate provides a sleek design that enhances any living space. With this thermostat, you will enjoy years of reliable service and easy-to-use, push-button climate control.
Specifications:
- Single stage, 1 heating/1 cooling
- Non-programmable

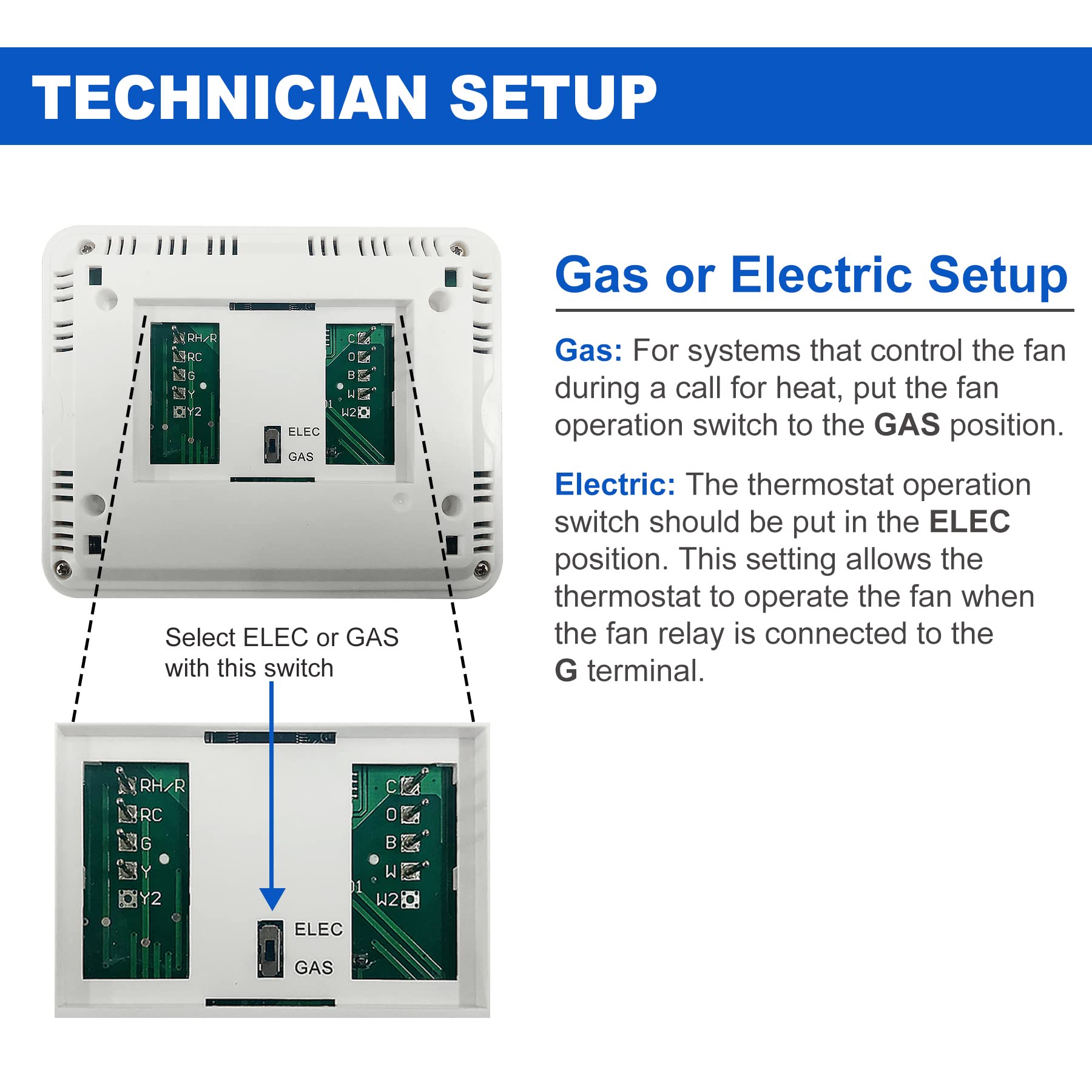

- Electric or gas/oil configurable
- 4.5 sq. inch large LCD display with blue backlight
- Temperature Display Range: 41°F to 95°F
- Temperature Control Range: 44°F to 90°F
- Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined
Features
- Large display and characters are easy to read
- Simple menu and big buttons for easy operation
- Dual powered by 2 x AAA batteries or 24VAC power
- Easy access battery compartment
- Fan switch with ON and AUTO functions
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustment
- 5 minute compressor delay protection (selectable on or off)
- Display Options: Fahrenheit or Celsius temperature display, 12 or 24 hour clock
- Low battery indication
- Easy wire coded terminal blocks
- Separate B & O terminals

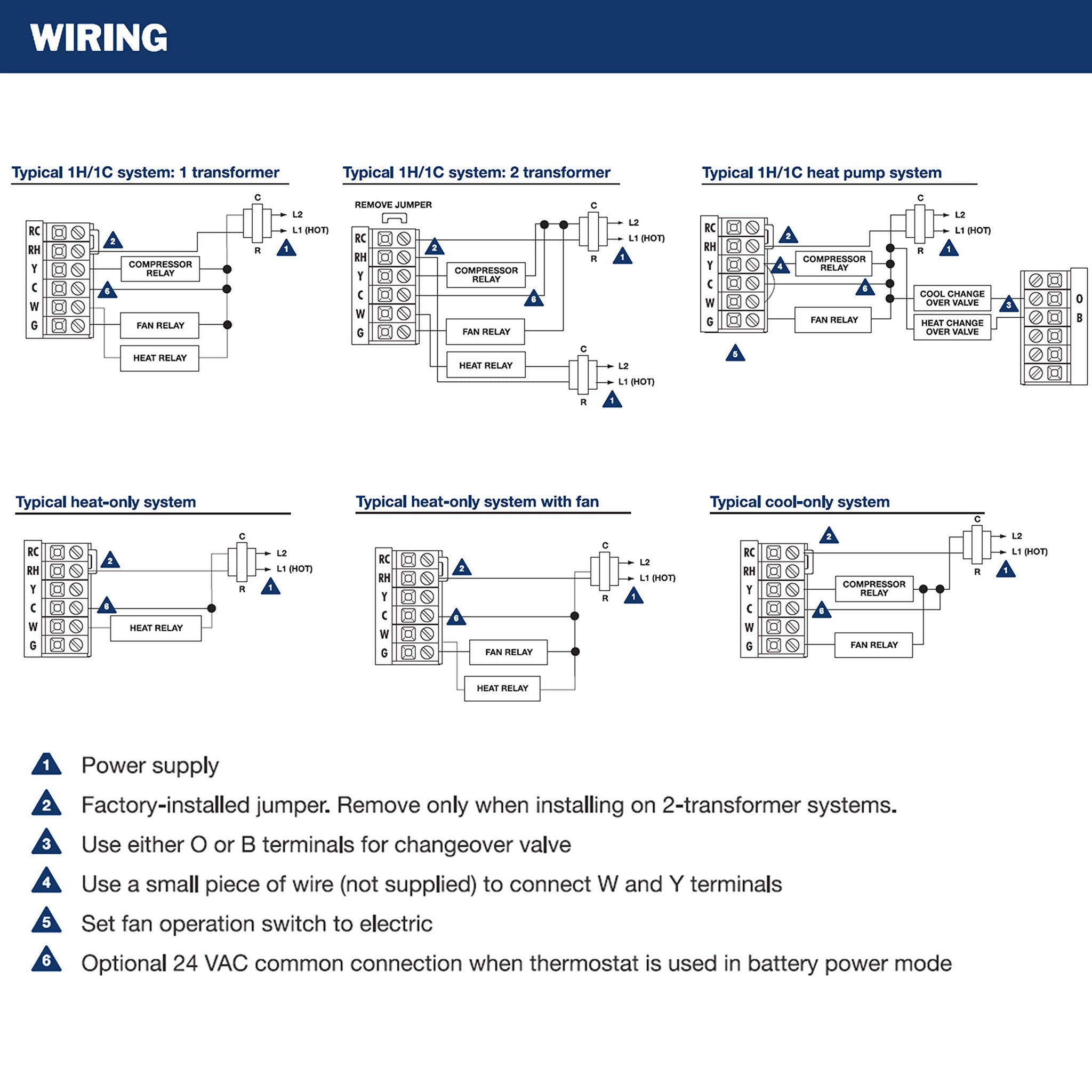

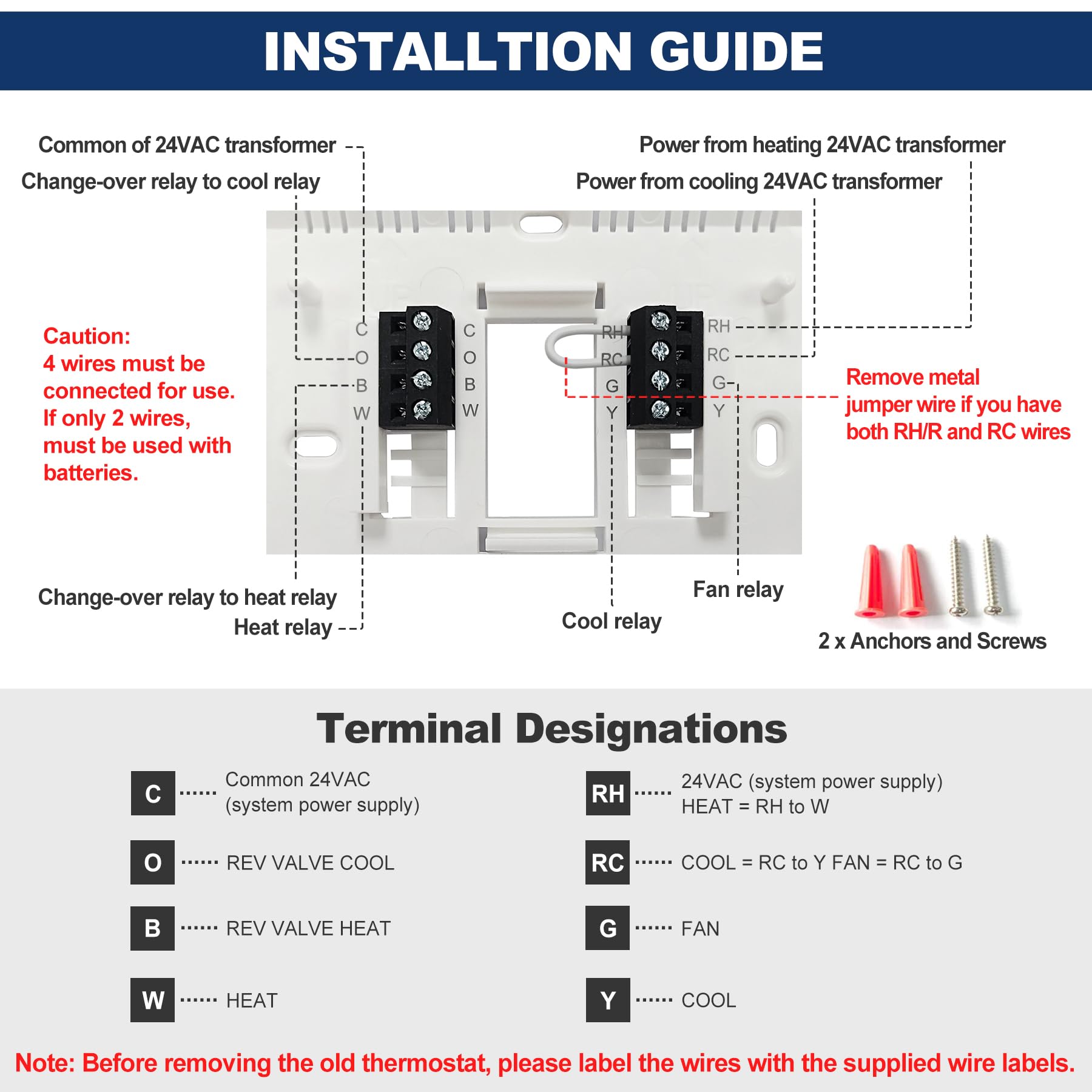

- Terminal Designations: RH, RC, G, Y, C, O, B, W
- Universal sub-base, mounts on wall or junction box
Package Contents
2 x Digital Thermostat
4 x Screws & Anchors
1 x Operation Manual
1 x Installation Manual
1 x Cable Label
EAN: 0724268608388

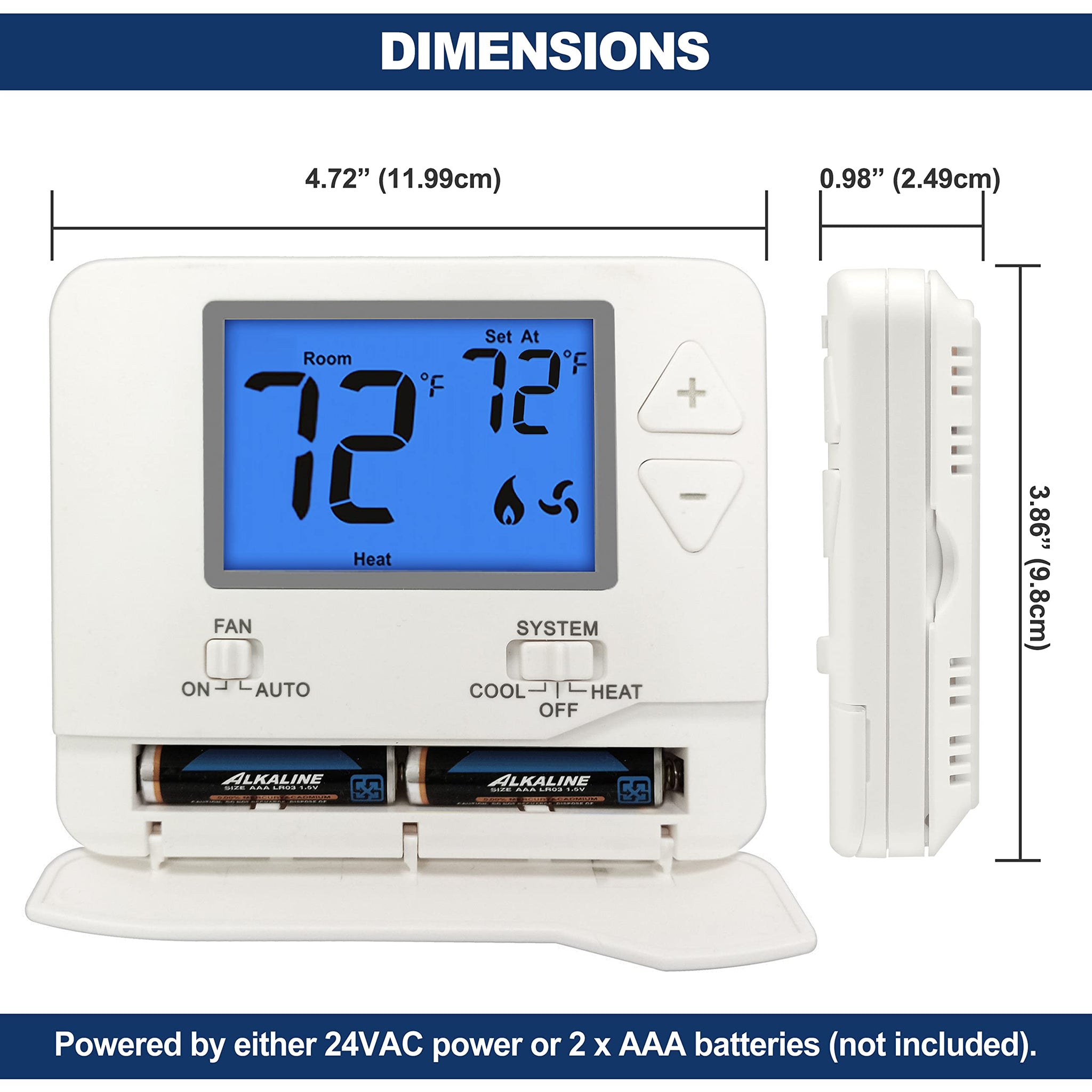

Package Dimensions: 5.5 x 4.6 x 1.5 inches
